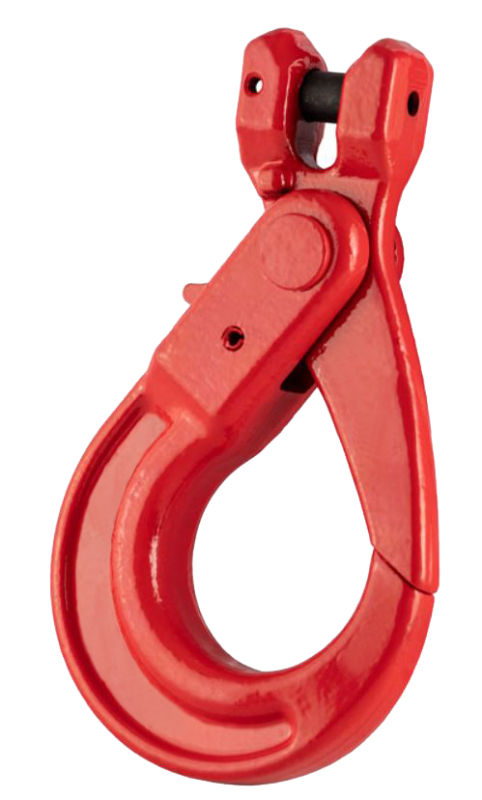

Grade 80 Clevis Self-Locking Hook - 10mm

Grade 80 Chain Self-Locking Hook in grade 80 alloy steel for lifting applications in industrial environments. Quoted working load limit conforms to European Standard EN 1677-1.

Working load limit: 3.15T
Chain diameter: 10mm
Weight: 1.38kg
Dimension A: 12.5mm
Dimension B: 48mm
Dimension C: 48mm
Dimension E: 45mm
Dimension H: 30mm
Dimension L: 195mm
Dimension L1: 142mm
Dimension M: 108mm
Dimension N: 26mm
Diameter ø: 58mm

Chain assemblies are custom made to order so we apologise that they are unavailable to purchase online as an assembly. Please contact one of the Sales Team to order. Thank you.
