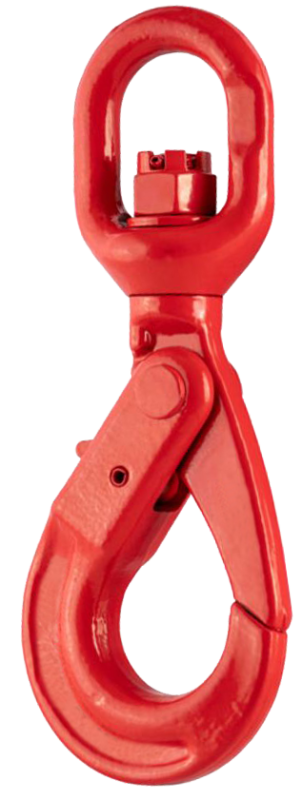

Grade 80 Swivel Self-Locking Hook - 16mm

Grade 80 Chain Self-Locking Hook in grade 80 alloy steel for lifting applications in industrial environments. Quoted working load limit conforms to European Standard EN 1677-1.

Working load limit: 8T
Chain diameter: 16mm
Weight: 7.33kg
Dimension A: 61mm
Dimension B: 56.8mm
Dimension C: 65mm
Dimension E: 63.3mm
Dimension H: 50.5mm
Dimension L: 406mm
Dimension L1: 355.6mm
Dimension M: 168.6mm
Dimension N: 36mm
Diameter ø: 86mm

Chain assemblies are custom made to order so we apologise that they are unavailable to purchase online as an assembly. Please contact one of the Sales Team to order. Thank you.
